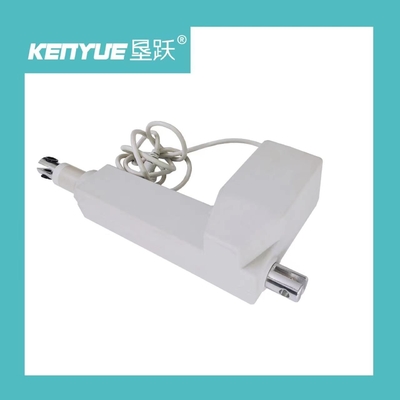

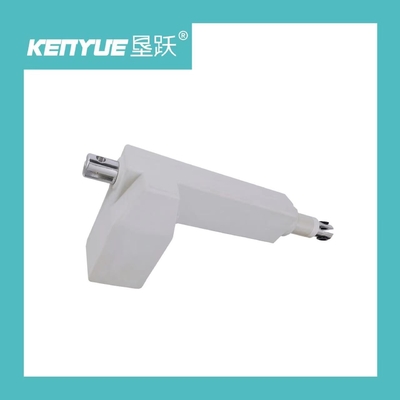

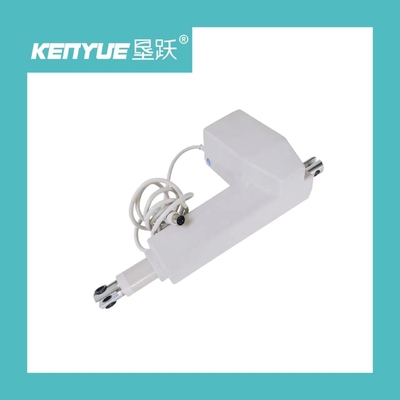

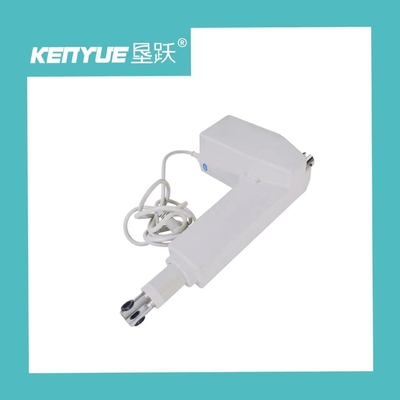

24V DC Permanent Magnet Motor White Linear Actuator For Medical Bed

24V DC Permanent Magnet Motor White Linear Actuator For Medical Bed

24V DC Permanent Magnet Motor

24V DC Hospital Motor

Hospital Bed Permanent Magnet Motor

Place of Origin:

China

Brand Name:

Ken Yue

Certification:

ISO,CE

Model Number:

GT-35B

CONTACT US
Request A Quote
Product Details
Other Name:
Hospital Motor
Application:
Medical
Type:
Motor Contoller
Material:
Stainless Steel
Color:
White
Operating Temperature:
0~50°C
Max Load:
6000N
Limit Switch:
Built-in
IP Grade:
IP43
Package:
Carton
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
23.44USD/PCS
Packaging Details
CTNS
Delivery Time
7-15Days
Payment Terms
L/C, T/T
Supply Ability
1000pcs/month
Product Description

24V DC Permanent Magnet Motor White Linear Actuator Medical Bed Motor



Features:

24V DC permanent magnet motor Push force up to 6000 N, pull force up to 4000 N Color: grey or black Standard protection level: IP54 Stainless steel tube with inner tube Average noise level below 45dB (Ambient noise is less than 40dB). Built-in electronic limit switch High strength front and rear clamps Certificate: CE, UL60601-1, IEC60601-1



Technical Parameters:

Max. load push(N)

6000

4000

2000

1000

Max. load pull(N)

4000

4000

2000

1000

Static Load push*(N)

6000

4000

2000

1000

Static Load pull*(N)

4000

4000

2000

1000

Input(VDC)

24

Speed at Full Load(mm/s)

3

4

8

12

Stroke Length(mm)

100~400 (option>400 )

Mounting position

H type,V type

Colour

Black or Grey

Limit Switch

Built-in

Overload Protection

Yes

Duty cycle

10%, max 2min. continuous use

IP Grade

IP54

Operating Temperature

Reed switch option

Only push option

Safety nut option

Standard

CE / UL


24V DC Permanent Magnet Motor White Linear Actuator For Medical Bed 024V DC Permanent Magnet Motor White Linear Actuator For Medical Bed 1
