Place of Origin:
China
Brand Name:
Ken Yue
Certification:
ISO,CE
Model Number:
KY-JS35B

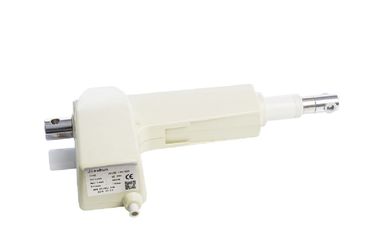

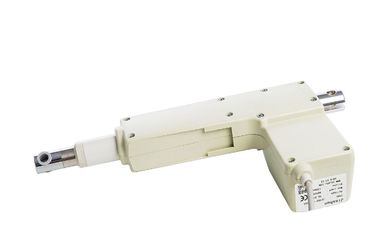

Electric Hospital Bed Accessories Actuator Motor Aluminum OEM Available
Features:
1.Made of high quality alluminum alloy. Can meet international standard with CE certificate.
2.Dynamic Load Push 1000N/2000N/3000N/4000N/6000N, Dynamic Load Pull 600N/1500N/2500N/3000N/6000N, Stroke 10mm~600mm(Optional) can be widely used by single function, two function, three function, five function electric hospital beds.
3.IP54 degree, water proof function.
Technical Parameters:
| Dynamic Load Push | 6000N | 4000N | 3000N | 2000N | 1000N |
| Dynamic Load Pull | 6000N | 3000N | 2500N | 1500N | 600N |
| Speed at Full Load | 5MM/S | 6MM/S | 6MM/S | 15MM/S | 28MM/S |
| Input | 12V/24V DC |
| Stroke | 10mm~600mm(Optional) |
| Colour | Black or White |
| Limit Switch | Built-in |
| Duty Cycle | S2-10MIIN |
| IP Grade | IP54 |
| Operating Temperature | -26~65 Degree |
